The electrophoretic coating line is a core process system in modern industrial coating, widely used for anti-corrosion primer coating of motorcycles, automobiles, aerospace products, home appliances and hardware parts. Based on electrochemical principles, charged coating particles are uniformly deposited on workpiece surfaces under the DC electric field generated by the KINTE® YZ2030 series electrophoresis power supply to form high-quality coatings. Its fully automatic design covers modules including pre-treatment, electrophoresis and electrophoretic curing, ensuring the coating delivers outstanding corrosion resistance, edge coverage and consistent film thickness.

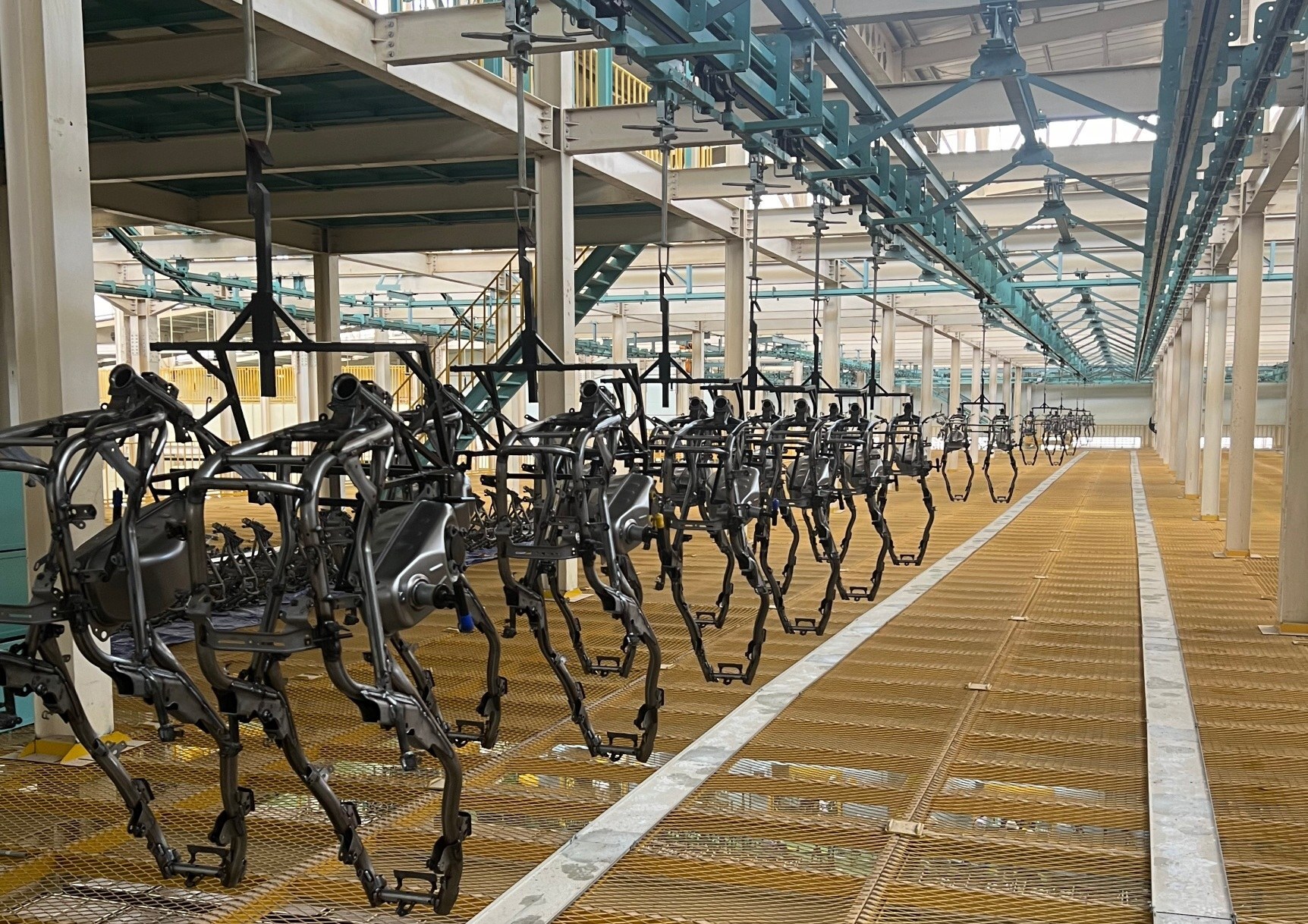

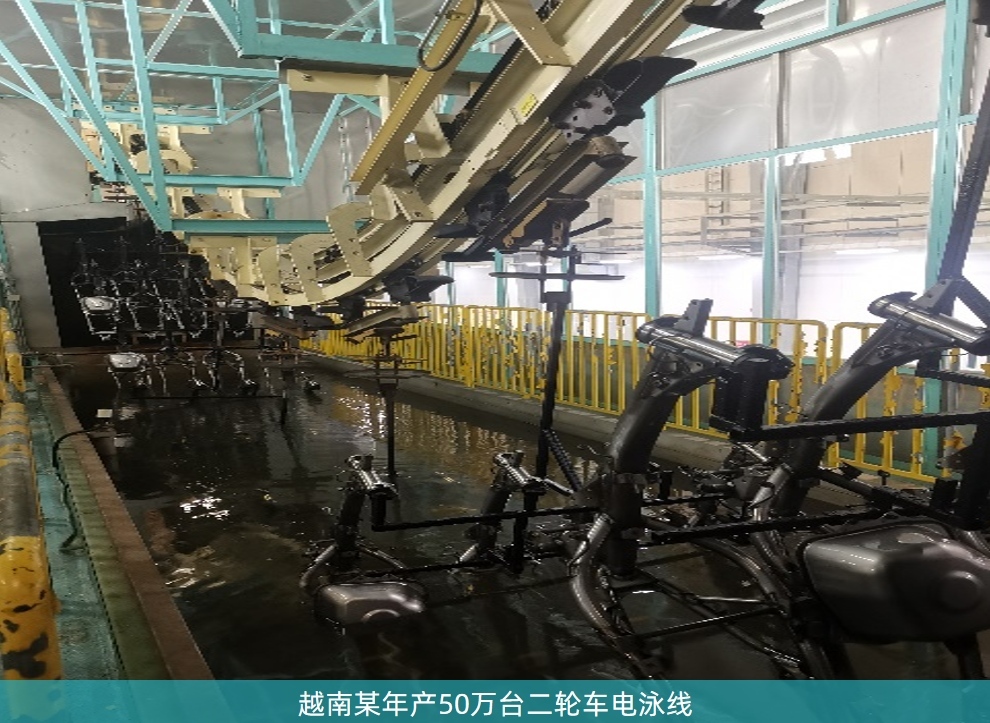

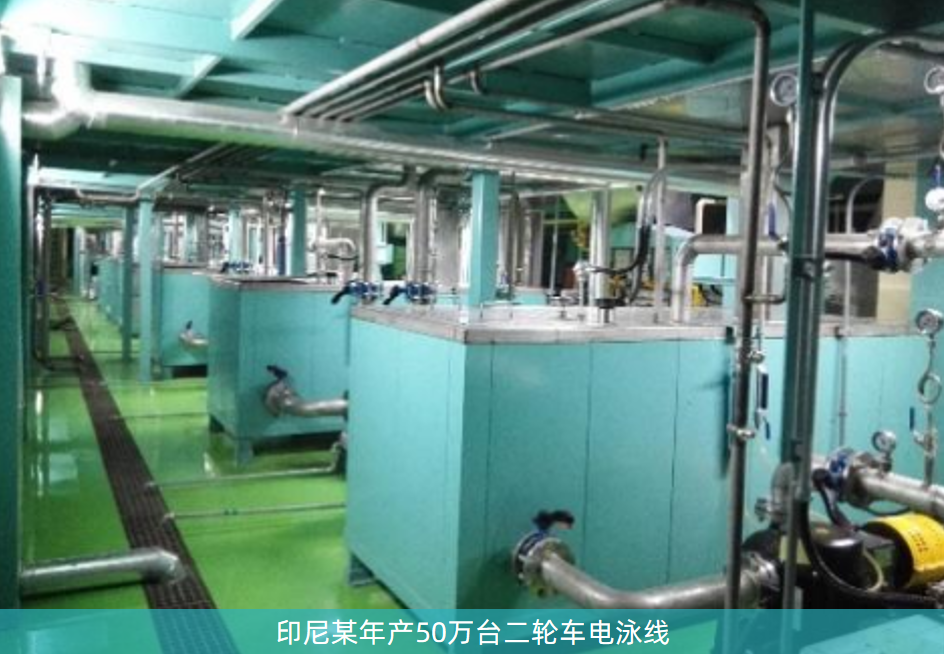

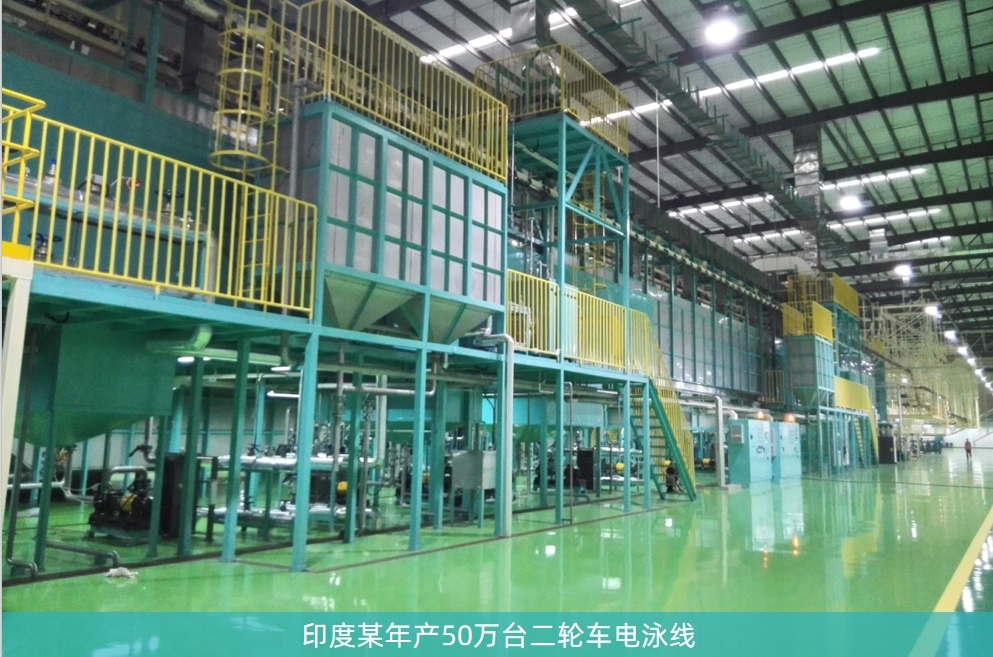

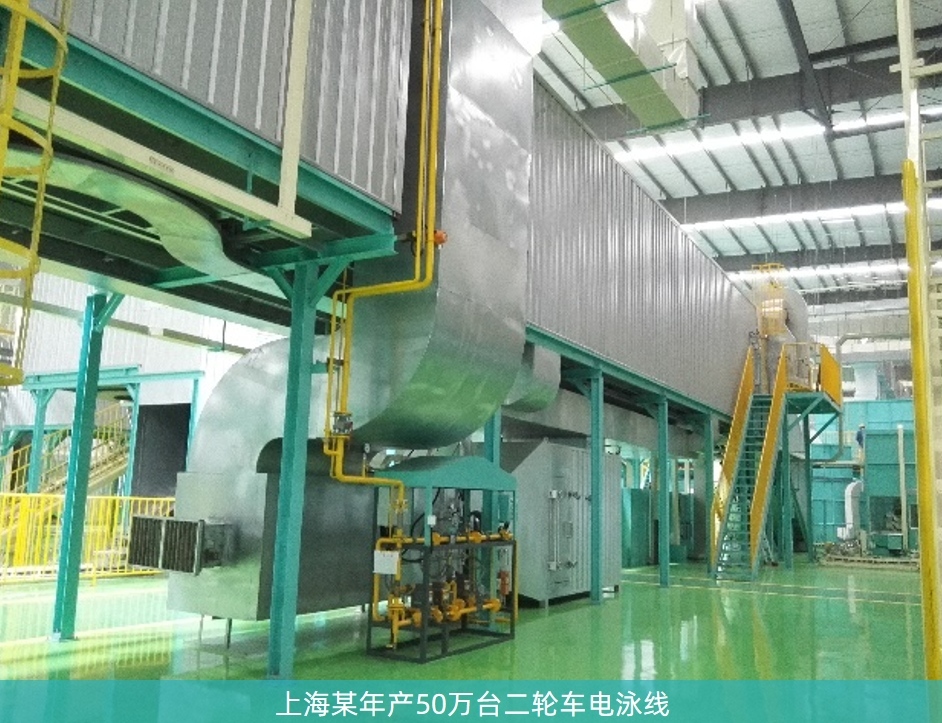

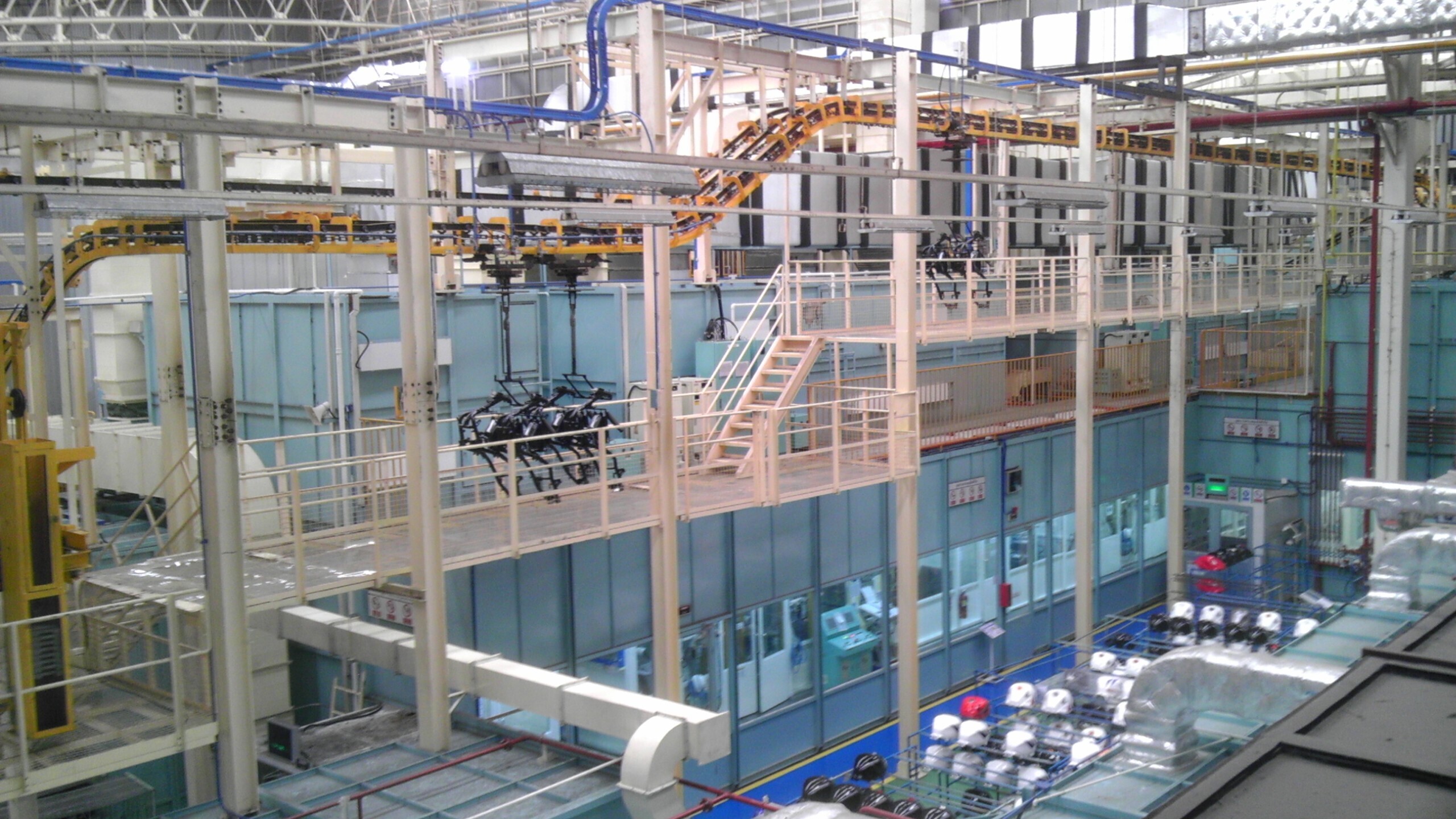

⬛️Two-wheeler Electrophoresis Line

Pretreatment technology adopts room-temperature film formation without heating. The surface conditioning process is eliminated to effectively reduce production energy consumption and achieve phosphorus-free discharge.

 Equipped with a power-and-free conveying system, it supports flexible production for multiple processes and intelligent frame production with zero inventory, delivering an overall optimal logistics route.

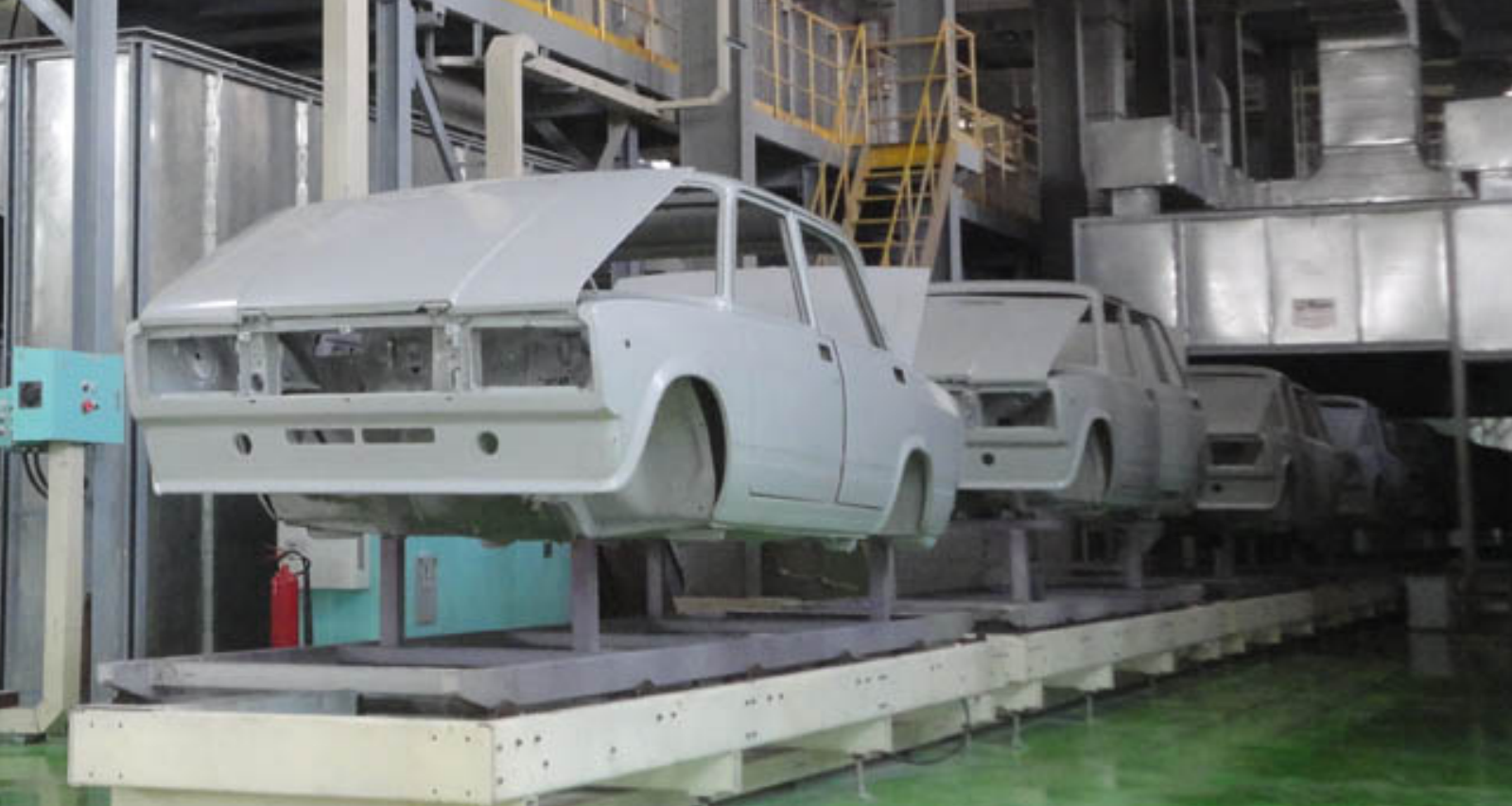

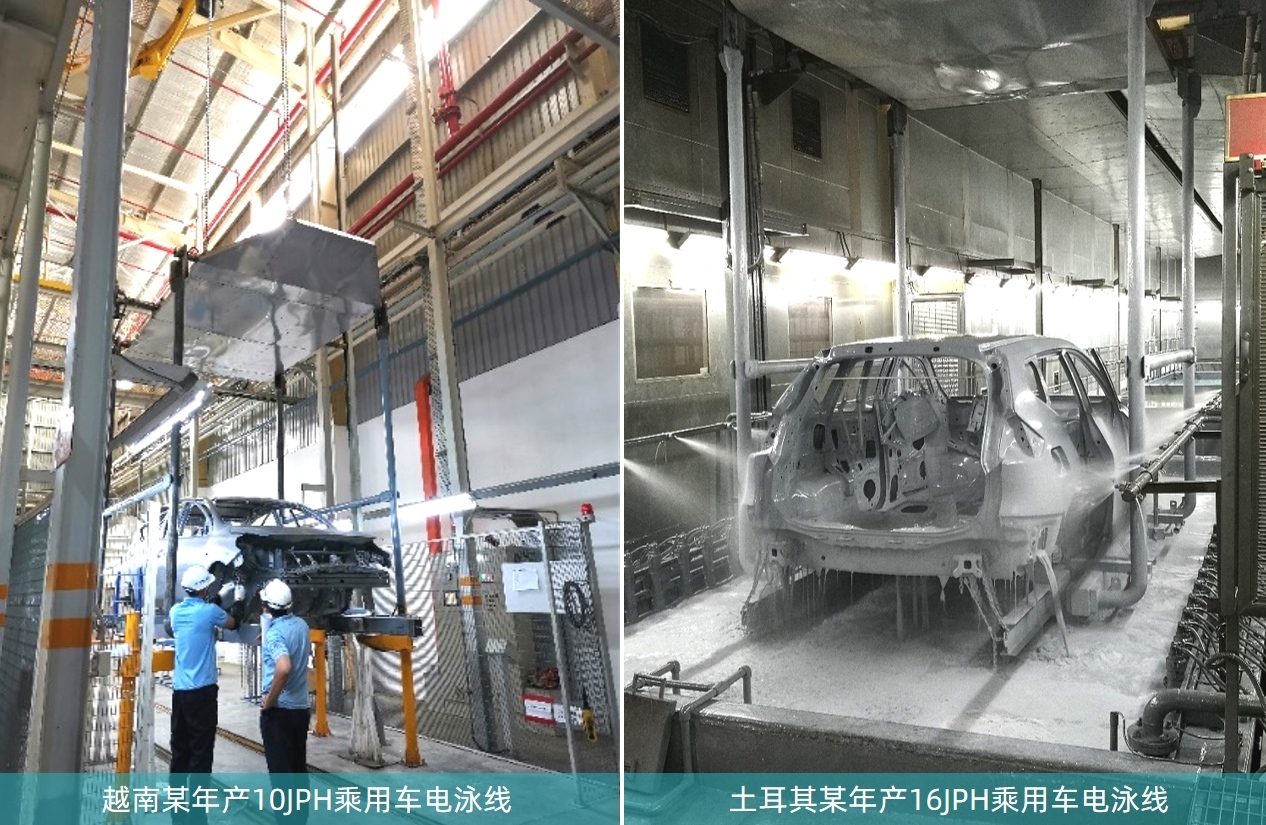

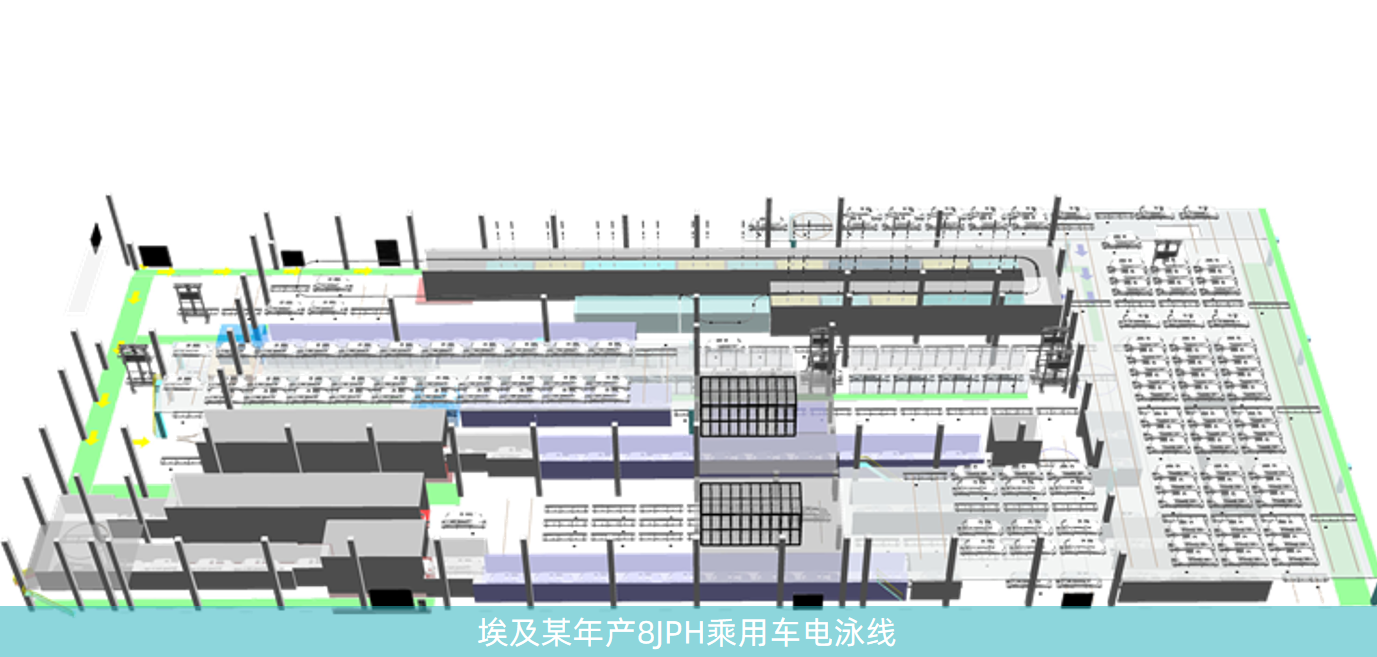

⬛️Passenger Vehicle Electrophoresis Line

The matched design of compact conveying system and process equipment reduces the footprint of process facilities.

Highly flexible configuration based on Kinte self-developed IGBT distributed electrophoresis power supply enables refined electric field control inside the electrophoresis tank.

The integrated design is equipped with ultrasonic high-temperature demulsifying oil-water separators, hydrocyclone separators and magnetic filters to resolve quality issues caused by iron slag and oil contamination.

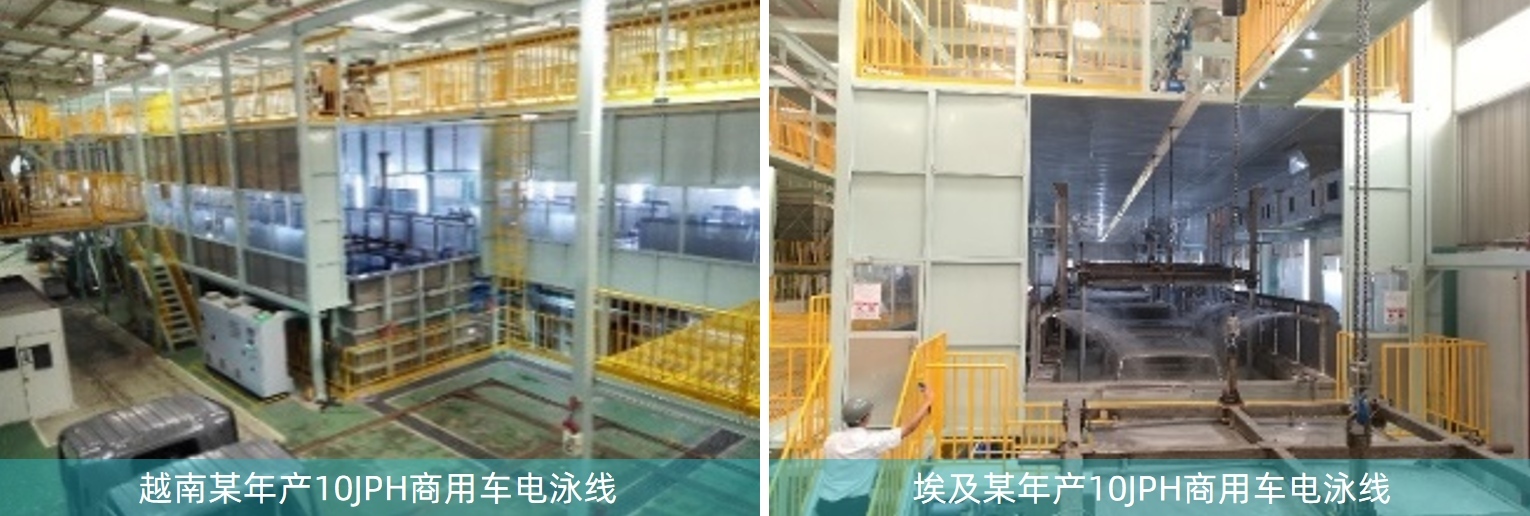

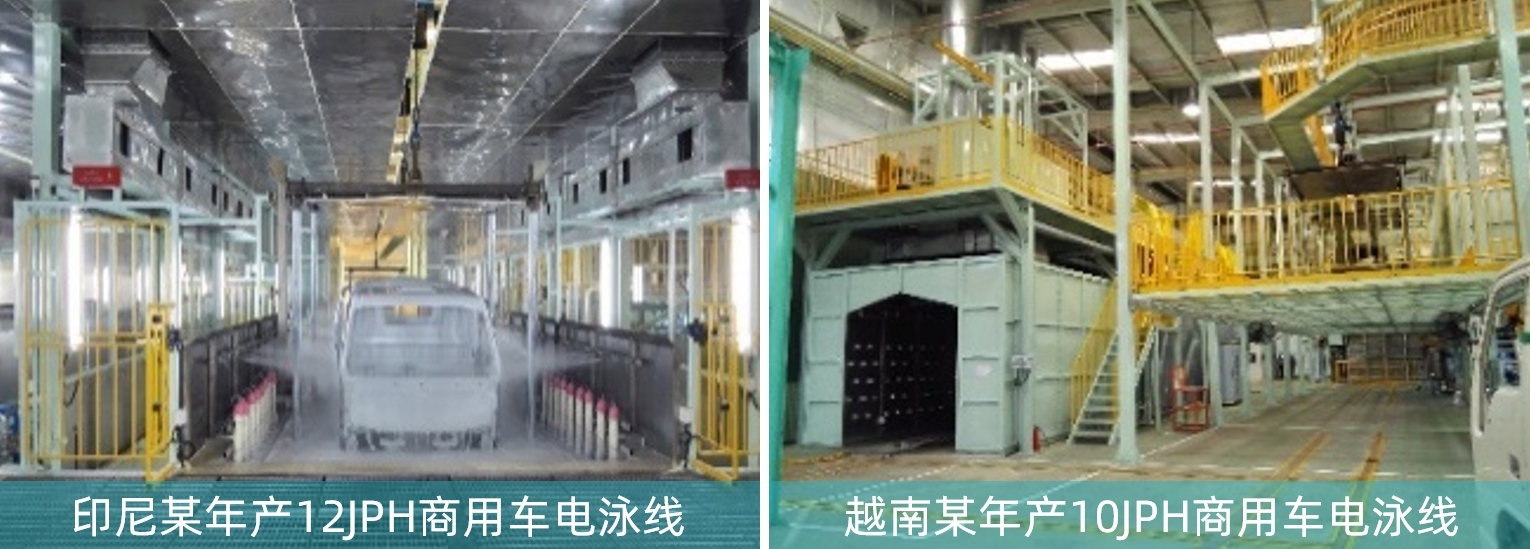

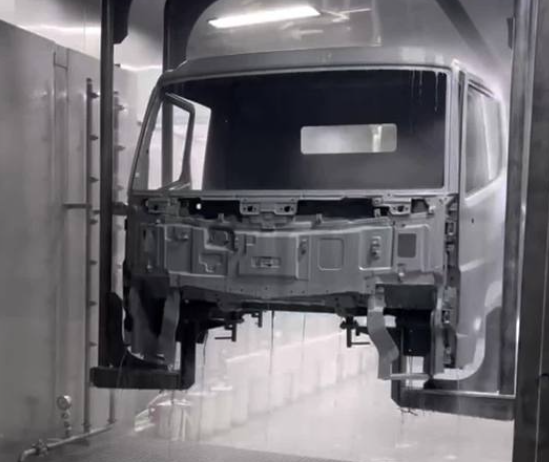

⬛️Commercial Vehicle Electrophoresis Line

Customized processes and parameters for commercial vehicles help customers achieve high utilization and low capital investment.

Multi-functional conveying and loading units enable flexible production of multiple vehicle types at low capacity.

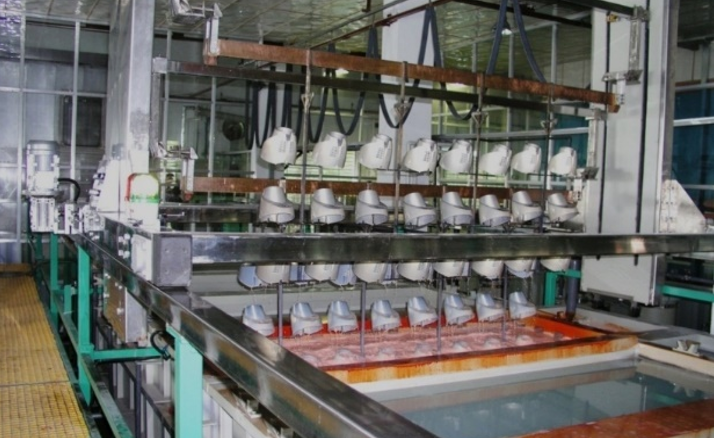

⬛️Home Appliance Electrophoresis Line

The flexible design adapts to electrophoretic coating of a wide range of small parts and enables efficient processing of irregular workpieces.

Energy-saving tank design reduces energy consumption and maintenance costs.

 It achieves full coverage without dead zones and edge protection for extremely complex and delicate structures.
